Selected Projects

From bottled water to desalination, our products deliver consistent results across industries worldwide.

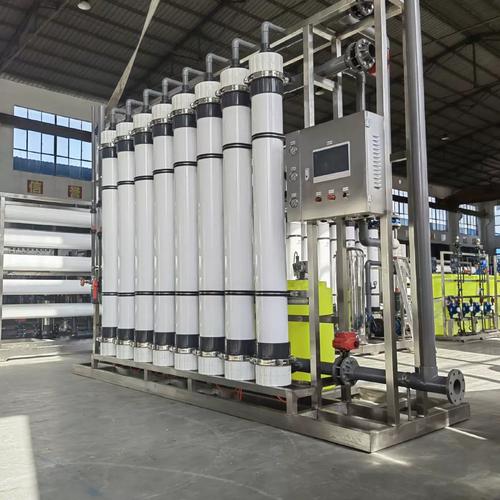

Bottled water plant water filtration project case study
Bottled Water

Bottled Water Plant Pre-Filtration

Jakarta, Indonesia

A 50 m³/h bottled water plant needed reliable pre-filtration before their RO system. Supplied PP melt blown and carbon block cartridges for sediment and chlorine removal.

Products UsedPP Melt Blown + Carbon Block
Capacity50 m³/h
Cartridge Usage10,000 units/year
Micron Rating5 µm (PP) / 10 µm (CB)
Achieved consistent RO feed water quality (SDI <3). Reduced membrane cleaning frequency by 60%.

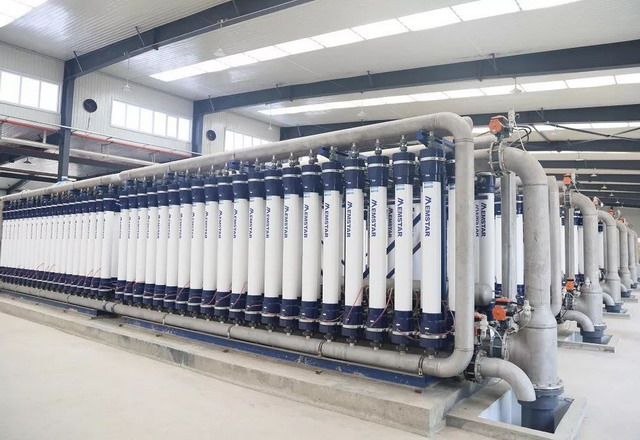

Municipal surface water treatment plant case study
Municipal Water

Surface Water Treatment Plant

Ho Chi Minh City, Vietnam

A municipal water treatment facility treating 100 m³/h of surface water needed wound string and pleated filters for sediment removal before UV disinfection.

Products UsedWound String + Pleated
Capacity100 m³/h
Micron Rating20 µm (WS) / 5 µm (Pleated)
Installation
40 sets of 20" housings
Turbidity reduced from 15 NTU to <1 NTU. Filter service life extended to 3 months between changes.

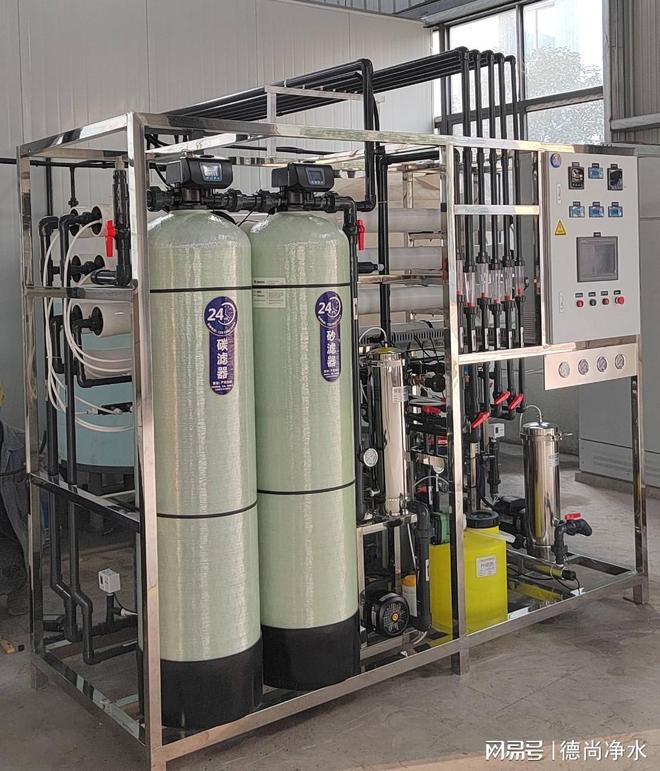

Food processing water filtration project case study
Food Processing

Food Processing Water System

Lagos, Nigeria

A food processing plant needed high-flow filtration for their production water. Selected Big Blue housings with carbon block cartridges for sediment and chlorine reduction.

Products UsedBig Blue Cartridges + Housings
Cartridge Size20" x 4.5" Big Blue
Cartridges per Cycle20 units
MediaCarbon Block + PP Melt Blown
Water quality met WHO drinking standards for food processing. Chlorine reduction >97%. System operational for 2+ years with routine maintenance.

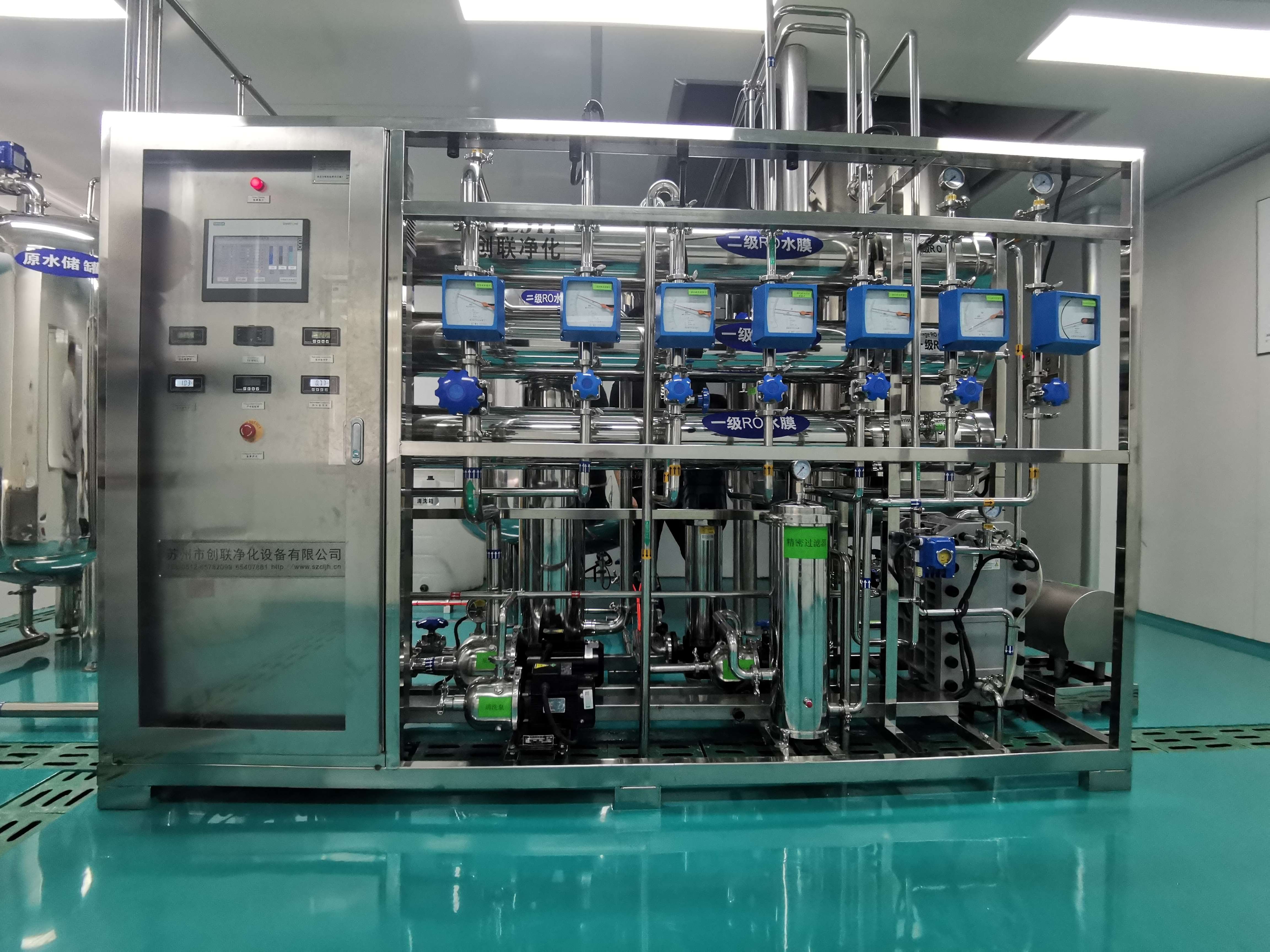

Pharmaceutical water filtration project case study
Pharmaceutical

Pharmaceutical Water Purification

Dhaka, Bangladesh

A pharmaceutical manufacturer required a 10 EP system using RO 4040 membranes with pleated post-filters for USP purified water production.

Products UsedRO 4040 Membranes + Pleated
System Size10 EP (10 vessels)
Permeate Flow2.5 m³/h
Rejection Rate99.3% salt rejection
USP purified water compliance achieved. Membranes showed stable performance over 18 months with proper pretreatment.

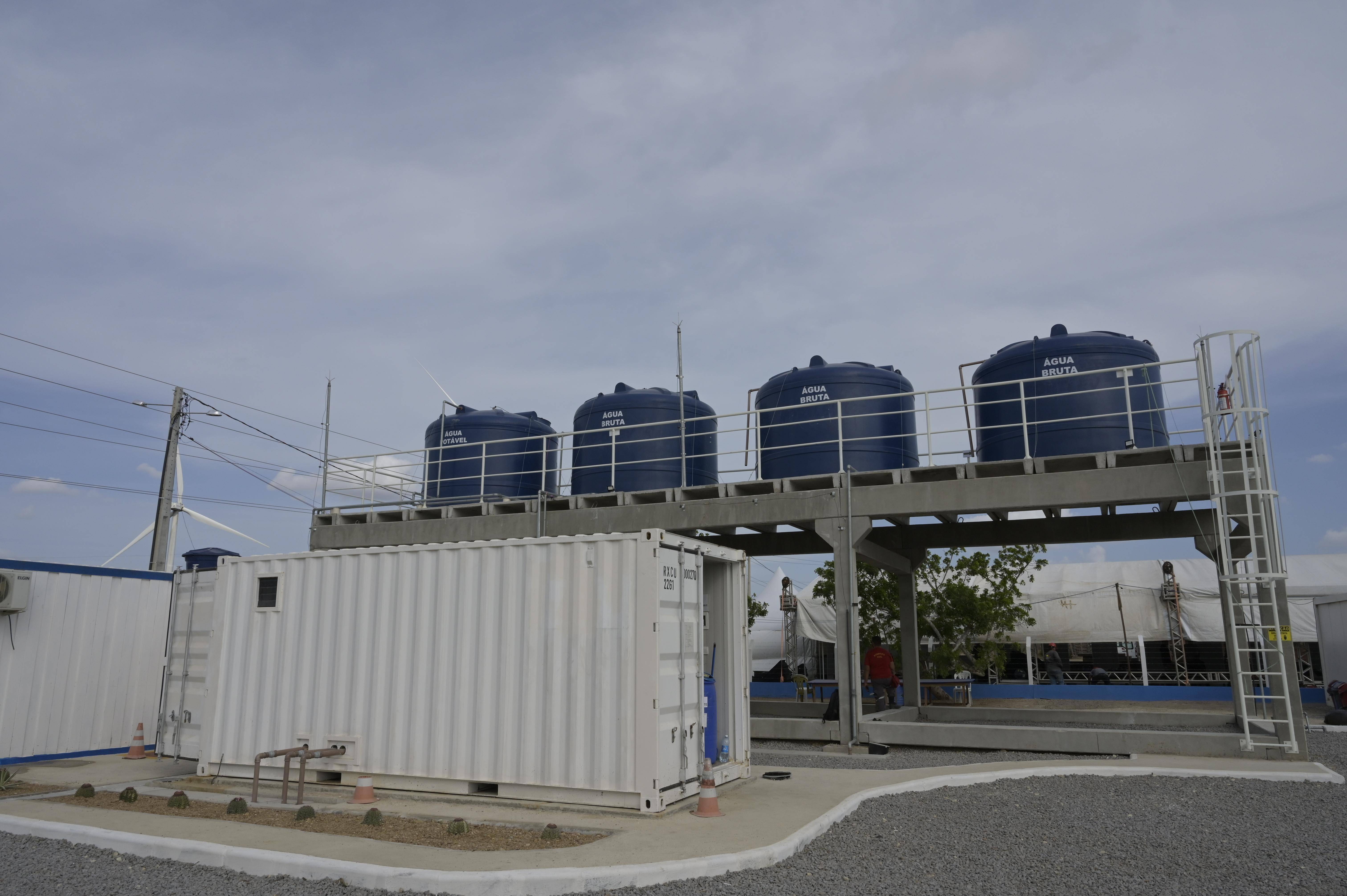

Desalination plant water treatment case study
Desalination

Brackish Water Desalination Pilot

Riyadh, Saudi Arabia

A pilot desalination project for brackish groundwater treatment used RO 8040 membranes to produce 500 m³/day of permeate for agricultural irrigation.

Products UsedRO 8040 Membranes
Capacity500 m³/day
Feed TDS4,500 ppm brackish water
Recovery Rate75%
Permeate TDS consistently below 200 ppm. Energy consumption within design parameters. Pilot data used for full-scale plant design.
