Wound String Filter Cartridge
Continuous winding depth filter - Model: JZ-WS Series
What Applications Need Wound String Cartridges?
How to Select the Right Micron Rating?
Why Source Wound String from a Chinese Factory?
Length
10" / 20" / 30" / 40"
OD / ID
2.5" x 1.1" (standard)
Other Sizes
Custom upon request
Fiber Material
PP (Polypropylene) / Cotton / Nylon
Core Material
PP / SS304 / SS316
Micron Ratings
1m, 5m, 10m, 20m, 50m, 100m
Max Temp (PP fiber)
60 degC
Max Temp (Cotton fiber)
90 degC
Max DP (recommended)
2.0 bar (30 psi)
End Caps
DOE, SOE-222, SOE-226
Pre-filtration
High sediment well water, river water
Industrial
Paint, electroplating, chemical, oil & gas
Food & Beverage
Wine, beer, juice (cotton grade)
Length
10" (250mm) / 20" (500mm)
Applications

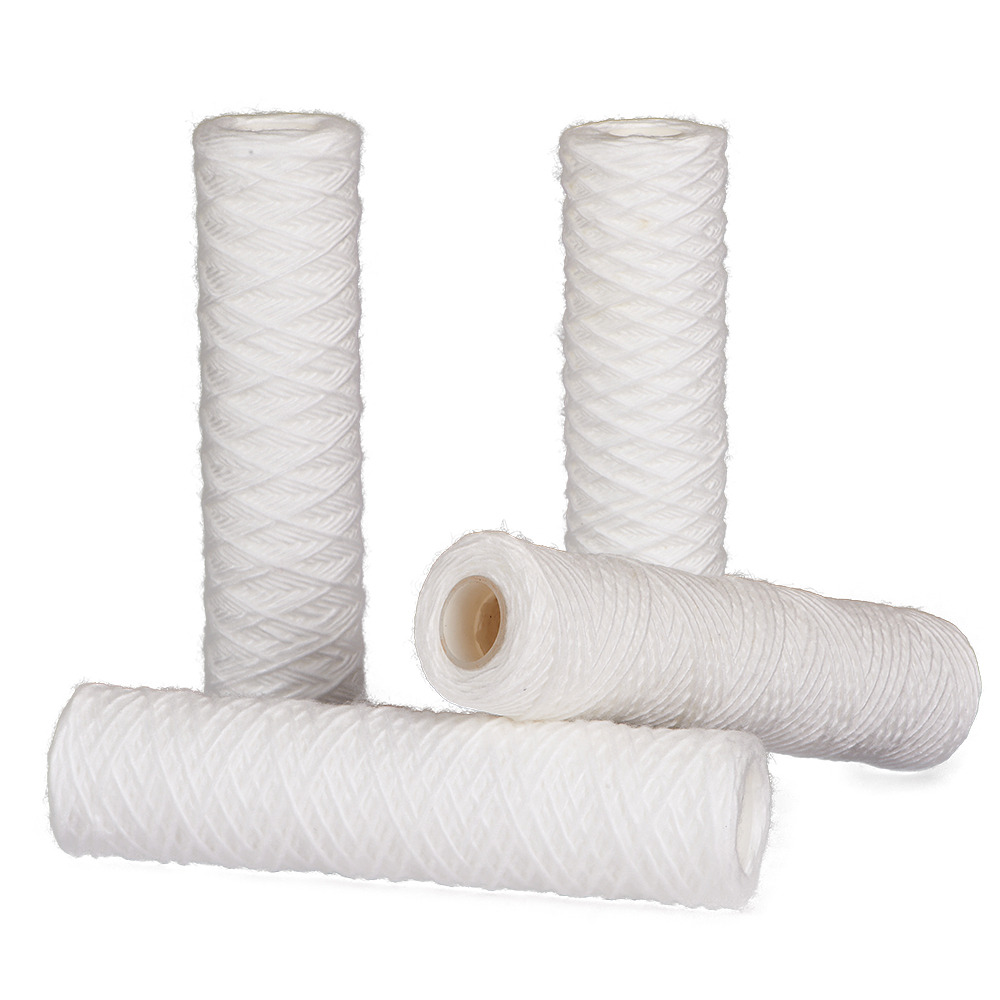

Wound string filter cartridge is a depth filter made by continuous winding of yarn (cotton, polypropylene, or polyester) around a central core. The winding pattern creates a graded density structure that captures particles throughout the depth of the cartridge. Ideal for sediment removal, water pre-filtration, and industrial process filtration where high dirt holding capacity is required.
Key Features
- Graded Density Winding -- Tight outer, loose inner for deep filtration
- Multiple Yarn Options -- Cotton, PP, or polyester fiber
- High Strength Core -- PP or SS304 center tube options
- Excellent Chemical Resistance -- Compatible with acids, alkalis, solvents
- High Flow Rates -- Low pressure drop across operating range
- Economical Choice -- Cost-effective for high-volume sediment removal
